HDPE Channel Drain with Stainless Steel Grate – 3-Pack

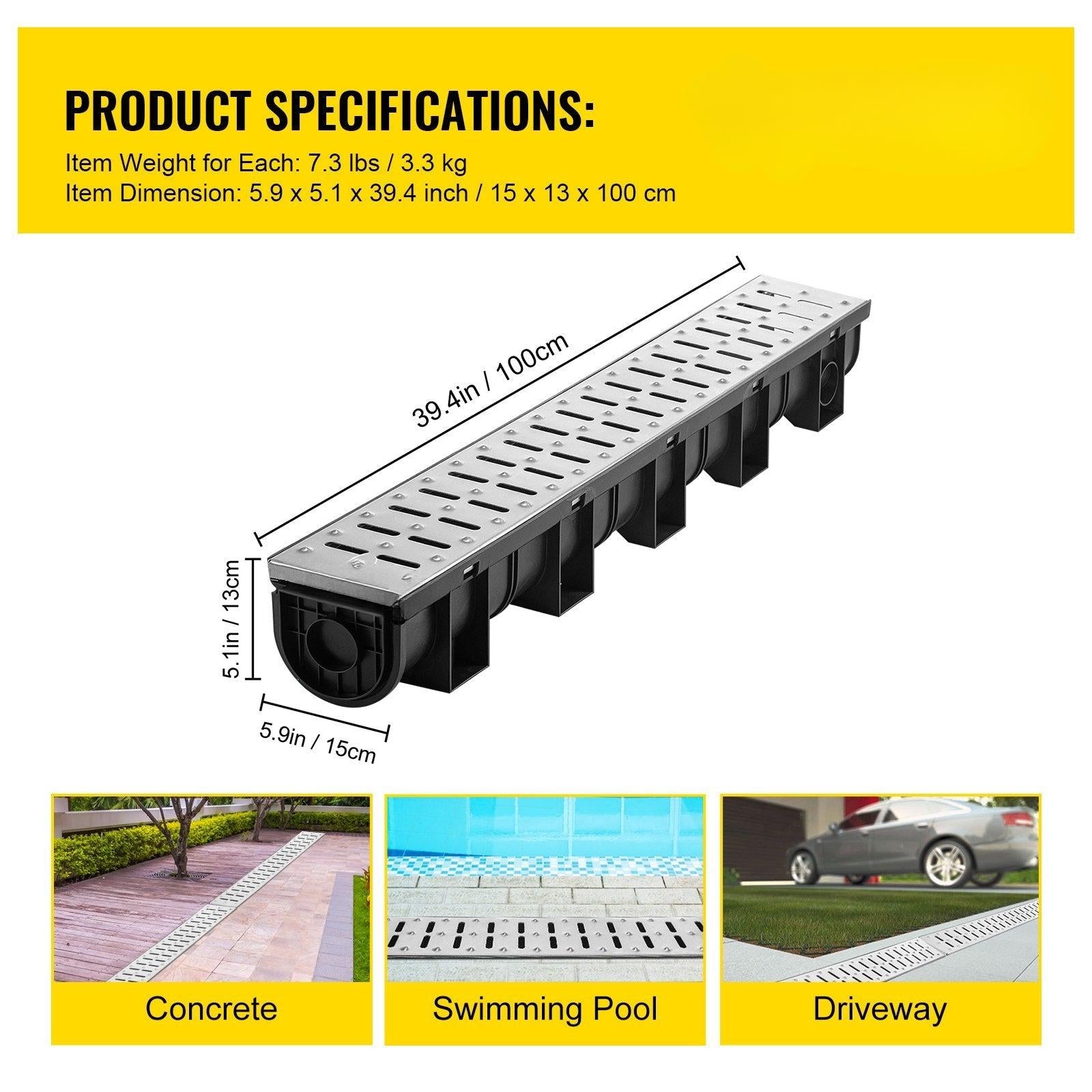

Coocosh HDPE Channel Drain System – 3-Pack (5.9 x 5.1 x 39.4 in)

Transform your outdoor space with the Coocosh HDPE Channel Drain System. This versatile 3-pack is designed to improve drainage around your garage, driveway, or pool, ensuring efficient stormwater management while maintaining a clean and tidy environment.

Key Features

• Durable HDPE drainage channels that resist corrosion and impact.
• Robust stainless steel grates for superior strength and longevity.
• Modular design with 3 sections, each 39.4 inches long, allowing for customizable length.
• Engineered tight connection design to minimize water leakage between sections.
• Includes 3 end caps for a polished, finished look.
• Perfect for installation in driveways, garage floors, pool areas, and concrete settings.
• Lightweight sections for ease of handling and faster installation.

Materials & Care

Constructed from 100% HDPE plastic for the channel and high-quality stainless steel for the grates, ensuring durability and resistance to wear and tear.

Installation / Usage Tips

For the most effective and leak-resistant installation, follow these best practices:

• Plan the trench route and mark it before cutting, ensuring a proper slope (typically 1%–2%) toward the outlet.
• Excavate a trench slightly deeper and wider than the channel to create a stable bedding layer.
• Position the channel sections on a compacted base and connect them using interlocking features while checking alignment.
• Secure the stainless steel grates after leveling the channels, using concrete or edge restraint for traffic areas.
• Seal joints or use recommended gaskets if watertight connections are necessary.
• Regularly clear debris from grates to maintain optimal flow and check connections for movement after heavy storms.

What's in the Box

• 3 x Coocosh HDPE trench drain channels (5.9 x 5.1 x 39.4 in each)
• 3 x Stainless steel grates
• 3 x End caps

Safety & Compliance
