Veterinary Color Display CMS60D-VET Pulse Oximeter Spo2 Probe PR VET Monitor
Regular price
$134.99 USD
Ask a question
Share
Couldn't load pickup availability
Description

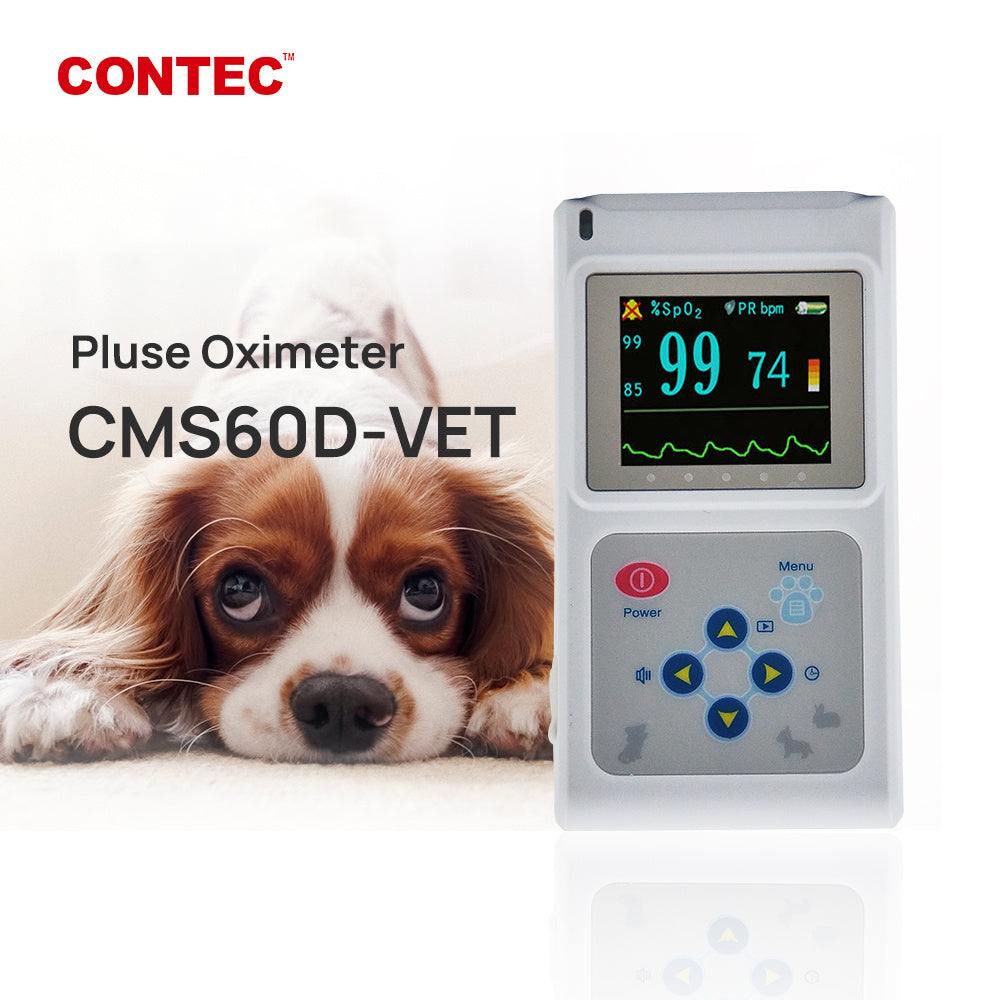

Veterinary Color Display CMS60D-VET Pulse Oximeter
Compact, portable veterinary pulse oximeter with a bright color display and external SpO2 probe for reliable SpO2 and pulse rate monitoring on animals via ear or tongue. Lightweight design, low power consumption, data storage and PC upload capability make it ideal for home use and veterinary clinics.

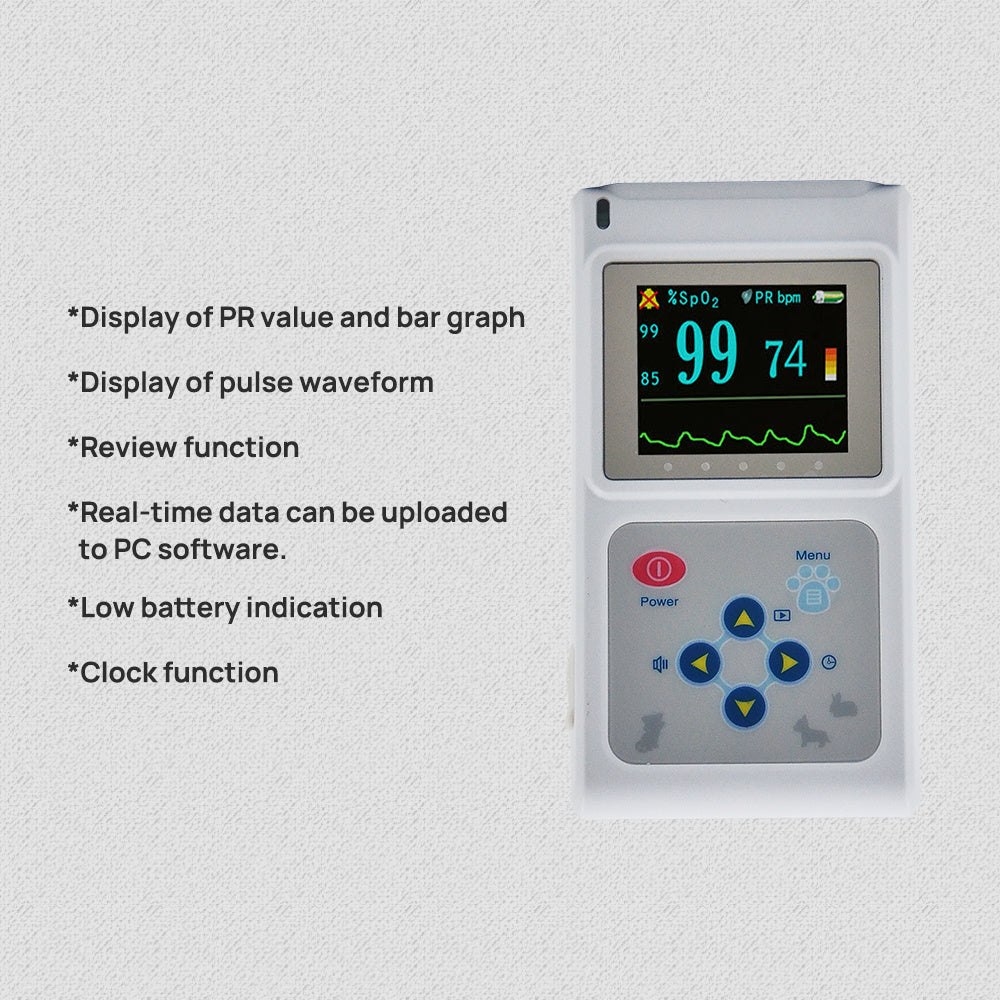

- Color display with adjustable brightness and pulse waveform for quick visual assessment.
- SpO2 measurement range 0%–100% (1% resolution); accuracy ±2% for 70%–100% range.
- Pulse rate range 30–250 bpm with ±2 bpm or ±2% accuracy (whichever is greater).

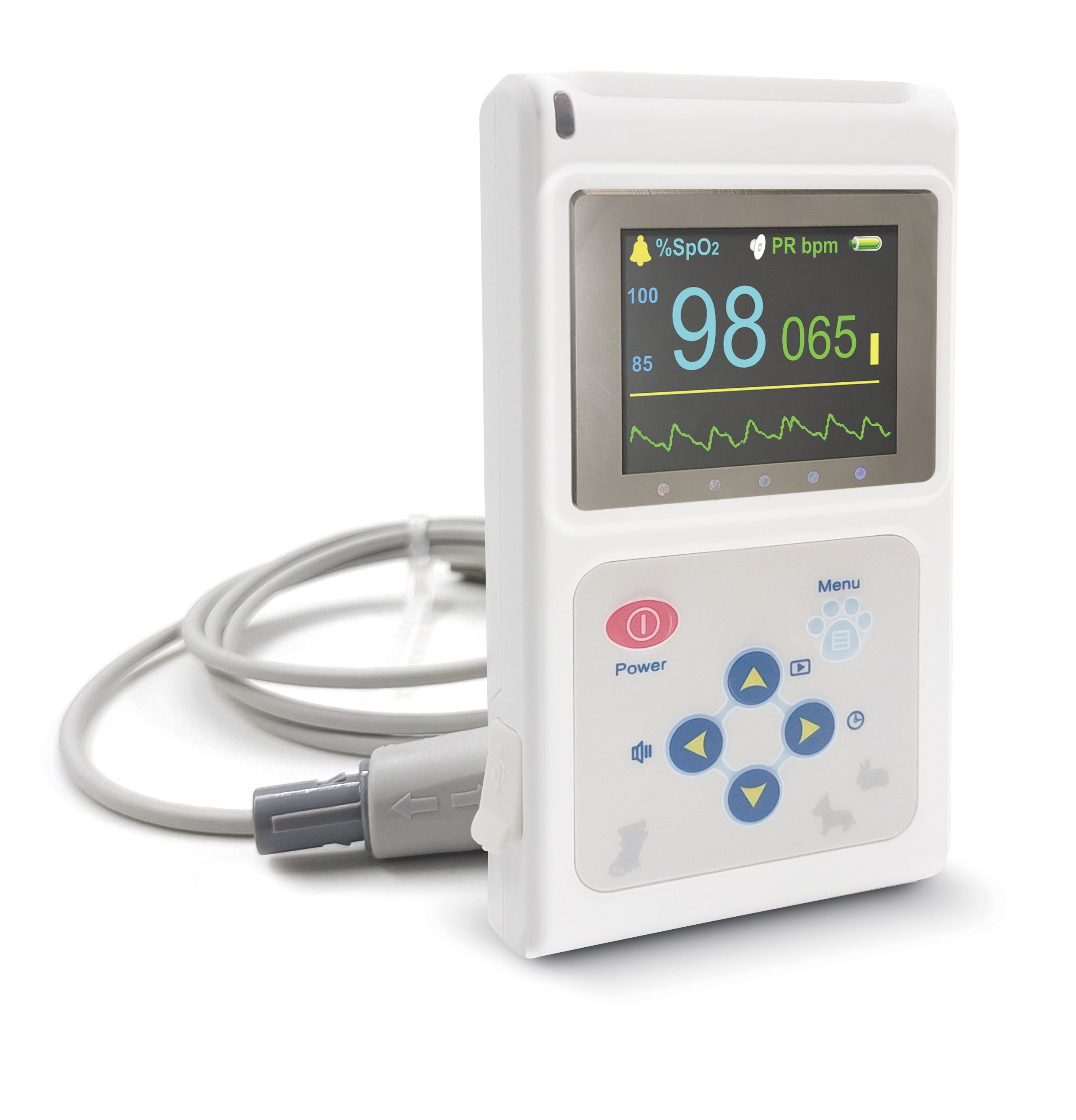

- Works with an external veterinary SpO2 probe for tongue or ear placement on animals.
- Data storage & real-time upload to PC via included data line; review function for past readings.
- Low power consumption — runs on two AA batteries with theoretical continuous time up to 44 hours.
- Portable and lightweight (about 120 g including batteries); audible prompts and battery status indication.
- Resistant to surrounding light; maintains measurement consistency under indoor lighting conditions.

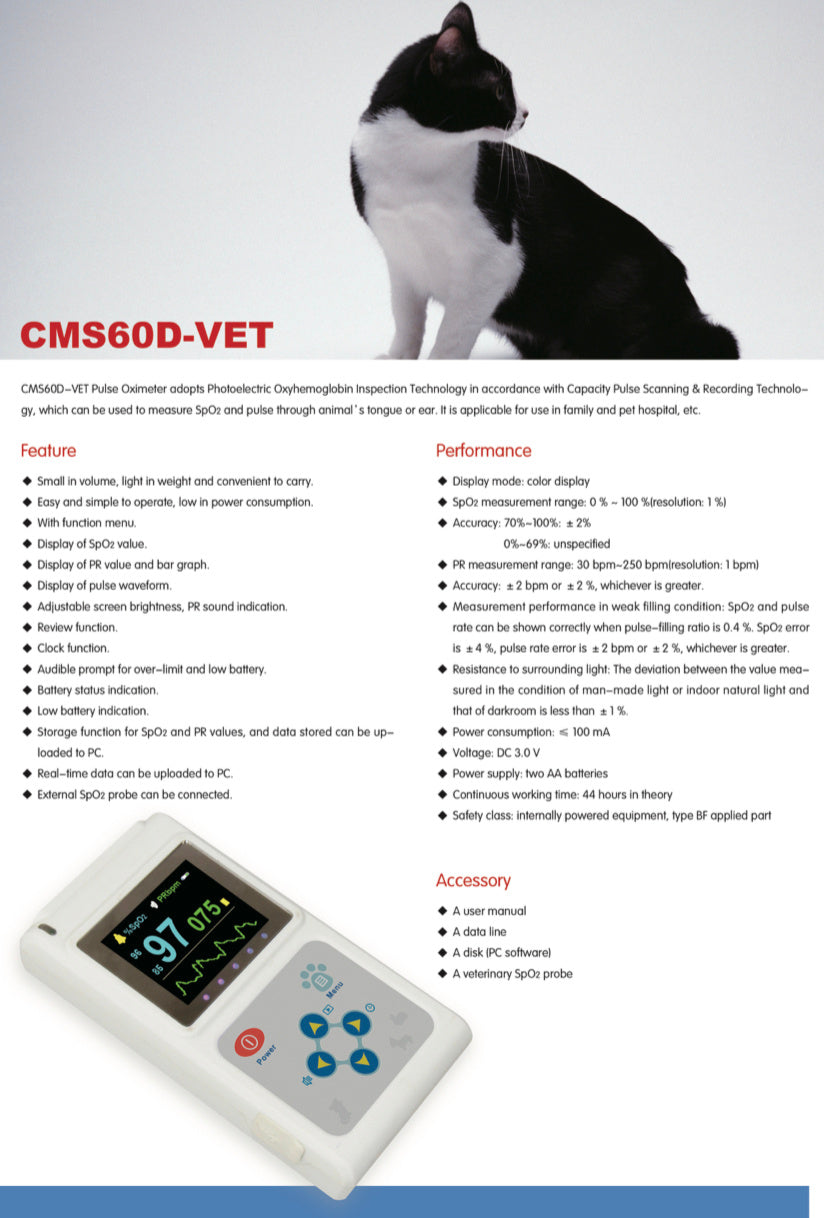

Technical Specifications
| Specification | Details |
|---|---|
| Brand | adong |
| Model | CMS60D-VET |
| Oximeter Type | Pulse oximeter with external probe |
| Display Mode | Color display (adjustable brightness) |
| SpO2 Measurement Range | 0% – 100% (resolution 1%) |
| SpO2 Accuracy | 70%–100%: ±2%; 0%–69%: unspecified |
| PR (Pulse Rate) Range | 30 bpm – 250 bpm (resolution 1 bpm) |
| PR Accuracy | ±2 bpm or ±2%, whichever is greater |
| Weak Filling Performance | Correct readings at pulse-filling ratio 0.4%; SpO2 error ±4%, PR error ±2 bpm or ±2% |
| Resistance to Surrounding Light | Deviation < ±1% vs. darkroom measurement |
| Power Supply | Two AA batteries (DC 3.0 V) |
| Power Consumption | ≤ 100 mA |
| Continuous Working Time (theoretical) | ~44 hours |
| Safety Class | Internally powered equipment, type BF applied part |
| Dimensions | 110 × 60 × 24 mm (24 × 14 × 7 cm listed) |
| Weight | About 120 g (including batteries) / 0.5 kg listed |
| Included Probe | Veterinary SpO2 probe (ear/tongue type) |
| Packaging | Carton |
| Country/Region of Manufacture | United States |
Installation / Usage Tips
- Place the veterinary SpO2 probe on the animal's ear or gently on the tongue where perfusion is good; keep the animal calm and still during measurement.
- Ensure the sensor site is clean and free of excessive hair, dirt, or moisture for accurate readings.
- Use two fresh AA batteries and check battery status before long sessions; replace batteries when low to avoid interrupted readings.
- Avoid direct intense light on the sensor; indoor ambient light is acceptable thanks to the unit's resistance to surrounding light.
- To upload or review stored data, connect the unit to a PC using the included data line and follow the user manual instructions for software use.
What's in the Box
- 1 × CMS60D-VET pulse oximeter unit
- 1 × Veterinary SpO2 probe
- 1 × Data line (for PC connection and data upload)
- 1 × User manual
- 1 × PC software disk (where provided)
Safety & Compliance
Classified as internally powered equipment, type BF applied part. Device provides audible low-battery and over-limit prompts. Use only as an adjunct monitoring tool in veterinary settings; follow local regulations and clinical best practices. Dispose of batteries according to local regulations.
