VEVOR Hydraulic Pressure Test Kit, 5 Gauges 13 Couplings 14 Tee Connectors 5 Test Hoses
Regular price
$209.99 USD
Compare colors
Ask a question
Share
Couldn't load pickup availability
Description
VEVOR Hydraulic Pressure Test Kit — 5 Gauges, Complete Coupling Set
Professional-grade hydraulic pressure test kit engineered for fast, accurate diagnostics on excavators, tractors, and heavy machinery. Built with durable aluminum alloy and 304 stainless steel components, this portable set gives technicians reliable multi-range pressure readings, broad coupling compatibility, and flexible hoses for safe, convenient field testing.
- Complete multi-range testing: five precision pressure gauges covering PSI/BAR ranges for low- and high-pressure systems.
- Wide compatibility: 13 test couplings and multiple thread adapters for major OEMs (Caterpillar, Komatsu, Hitachi, Hyundai, etc.).
- Durable construction: aluminum alloy 6061 main body and 304 stainless steel gauge casings with thread protectors.

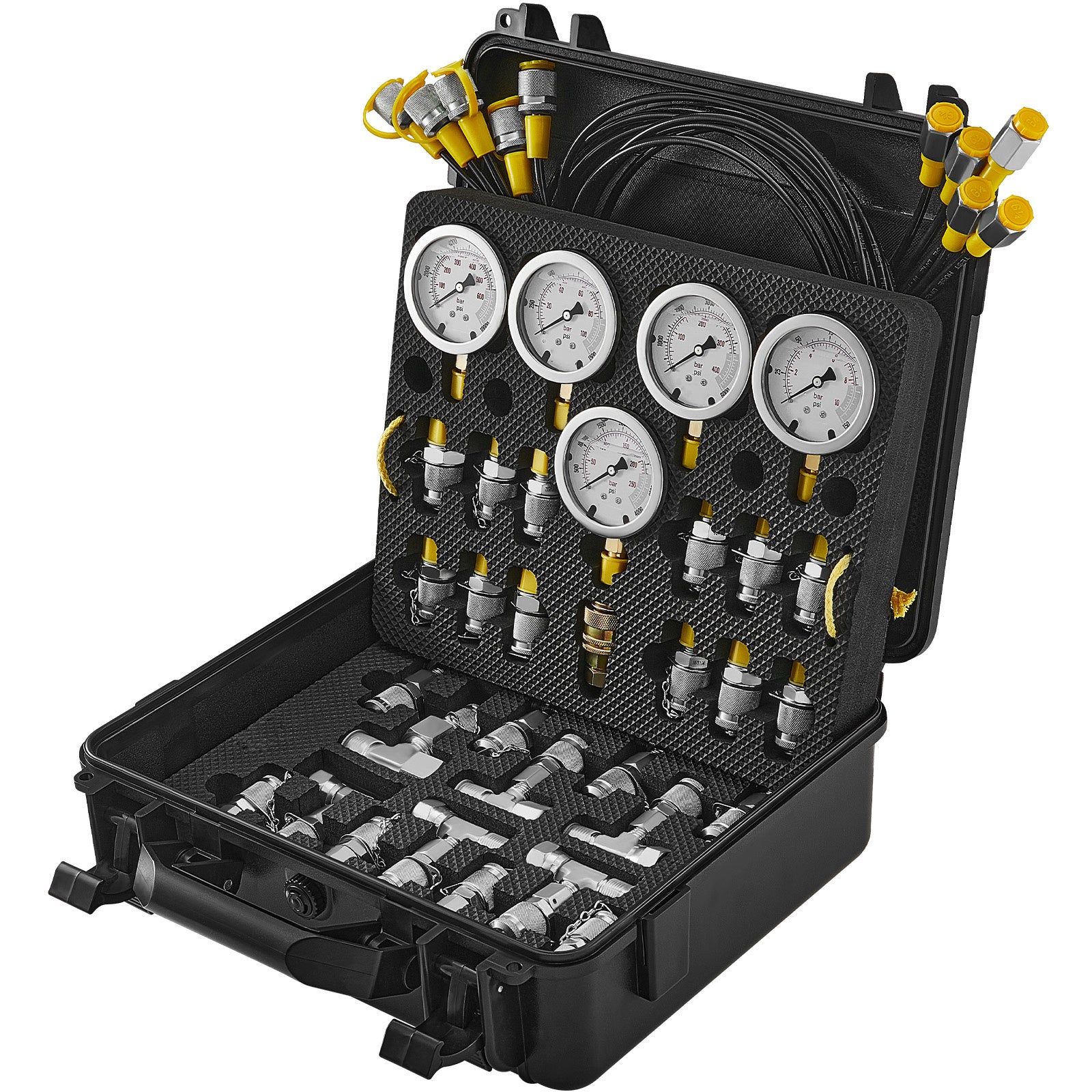

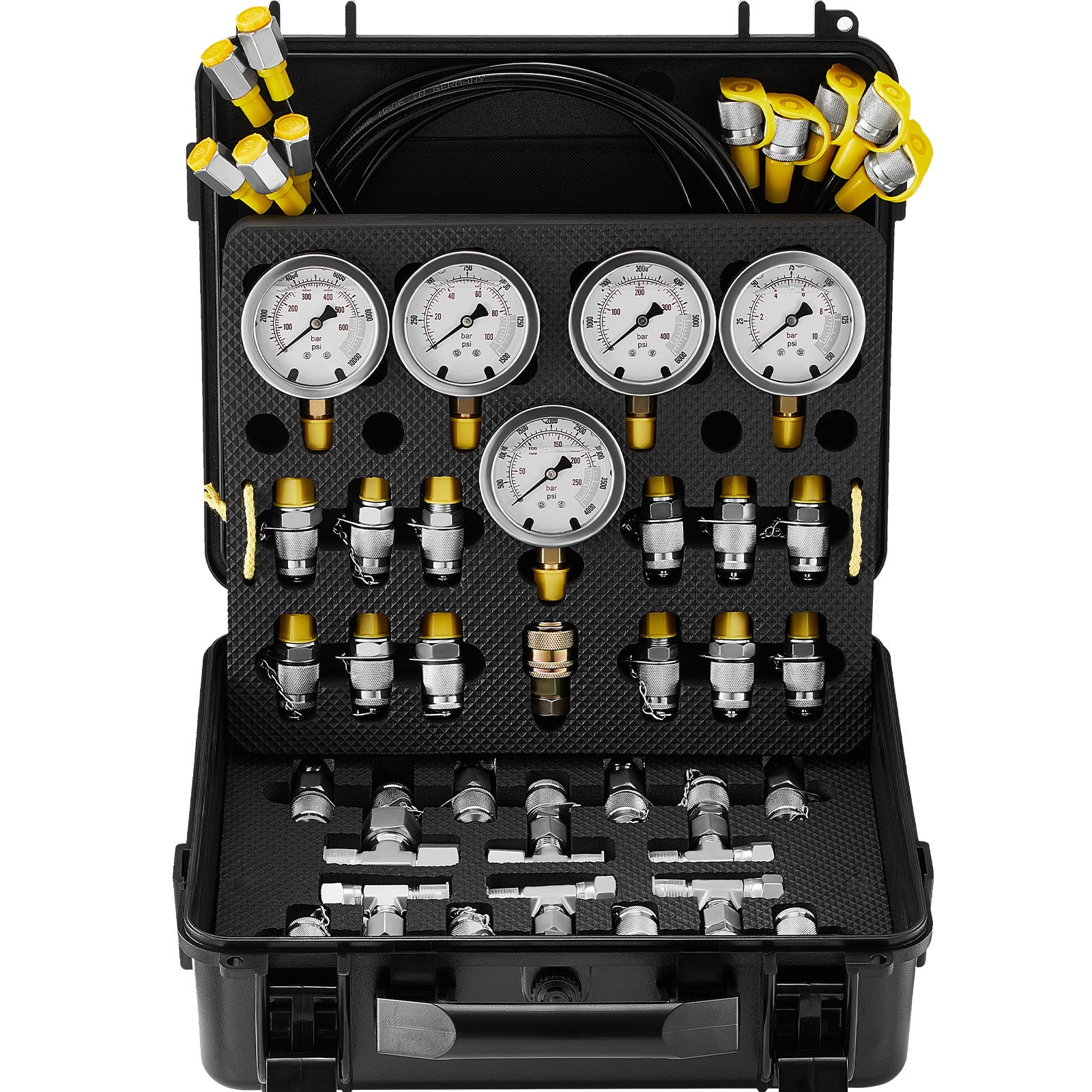

- Portable and organized: heavy-duty carrying case keeps gauges, hoses, and adapters secure on the jobsite.

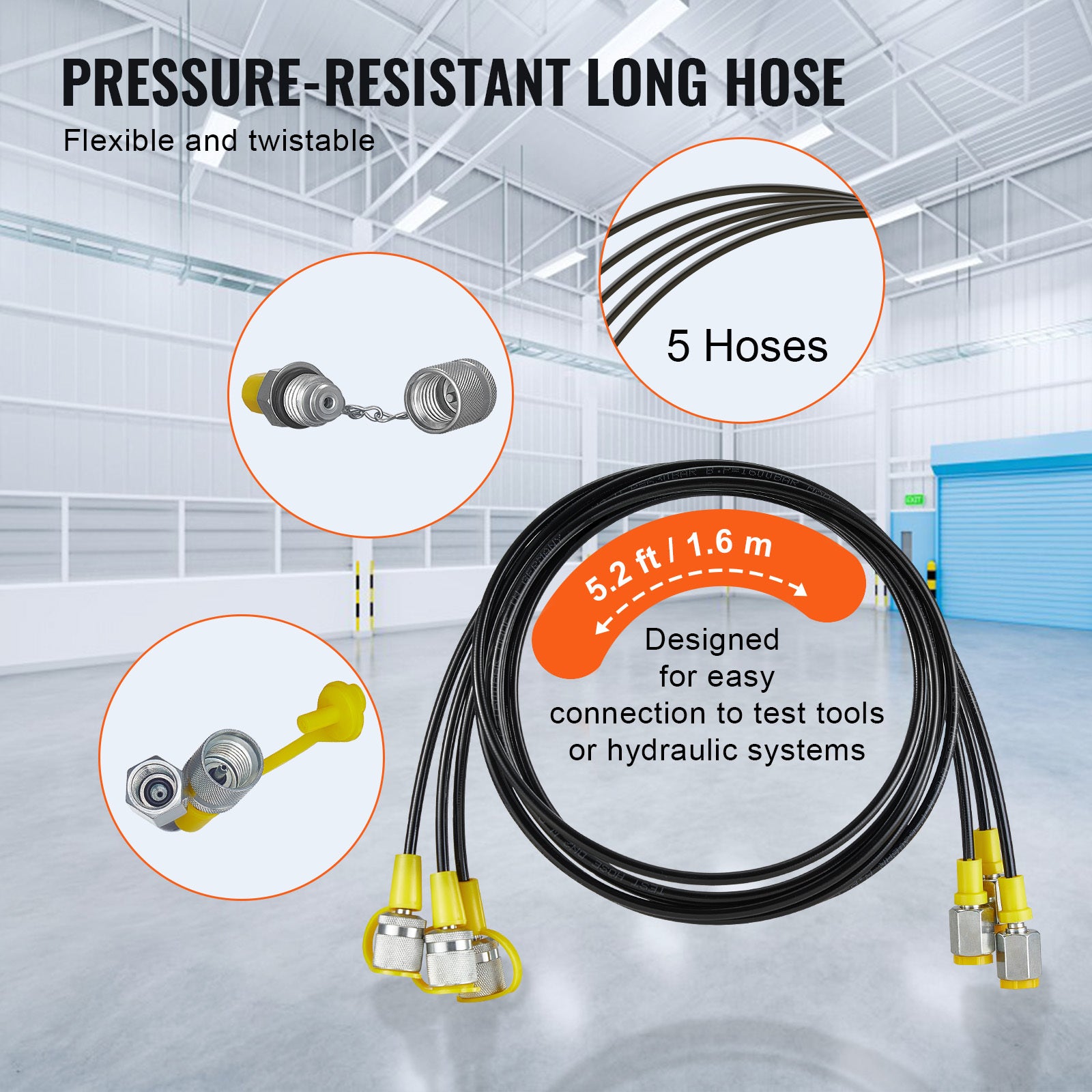

- Flexible, pressure-resistant hoses: five long test hoses (≈5.2 ft / 1.6 m) designed to resist twisting and kinking.

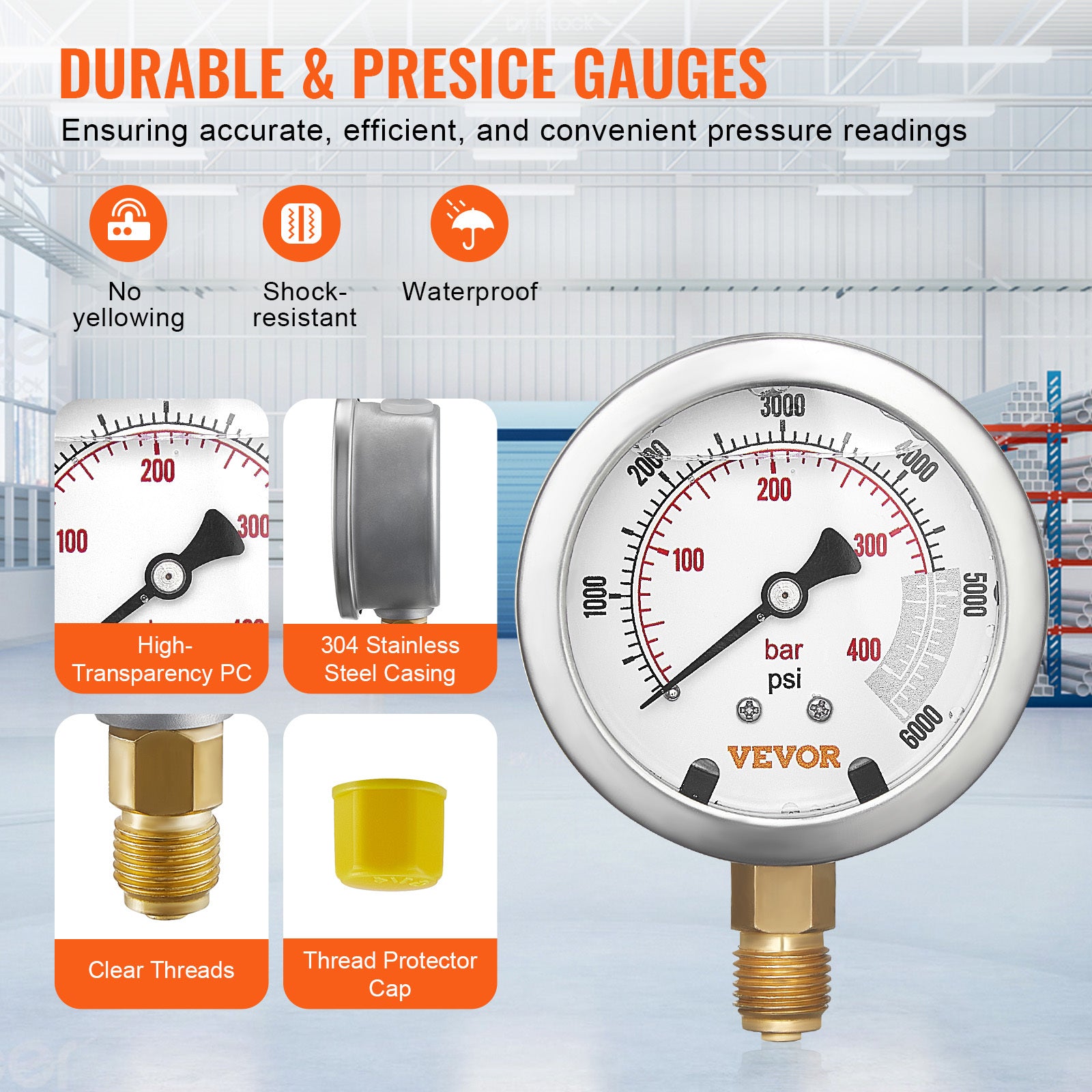

- Clear, shock-resistant gauge faces with high-transparency PC covers for reliable readings.
- Includes tee connectors and desiccant packs to support extended field use and protect instruments.
Technical Specifications
| Brand | Vevor |
|---|---|
| Model | TKS-4 (item model number) |
| Product Type | Home Office Storage / Hydraulic Test Kit |
| Material | Aluminum Alloy 6061; 304 Stainless Steel; High-transparency PC gauge covers |
| Gauges | 5 pressure test gauges (dual unit PSI/BAR) |

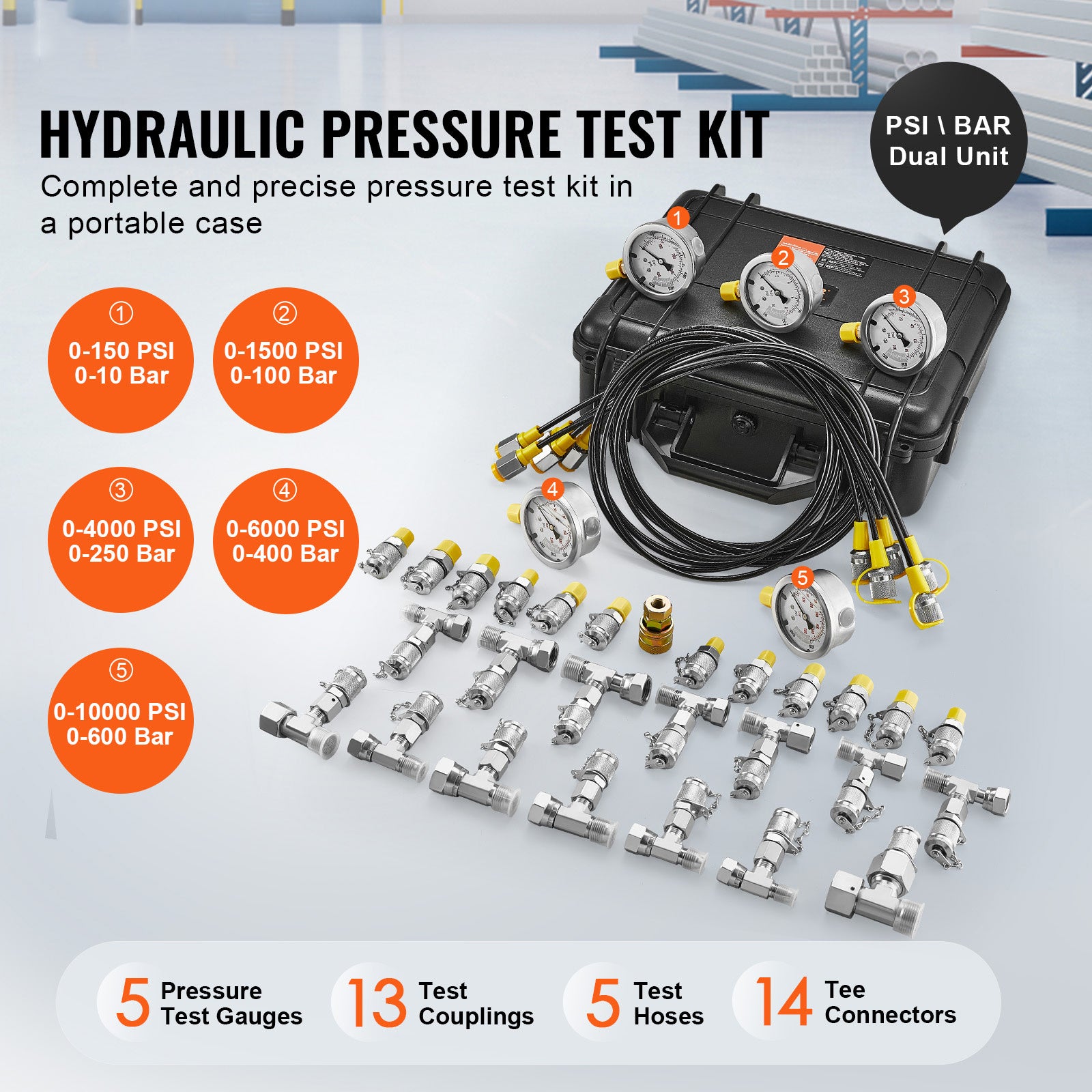

| Gauge Ranges | Multiple ranges included (examples on product label: 0–150 PSI / 0–10 Bar; 0–1500 PSI / 0–100 Bar; 0–4000 PSI / 0–250 Bar; 0–6000 PSI / 0–400 Bar; 0–10000 PSI / 0–600 Bar) |

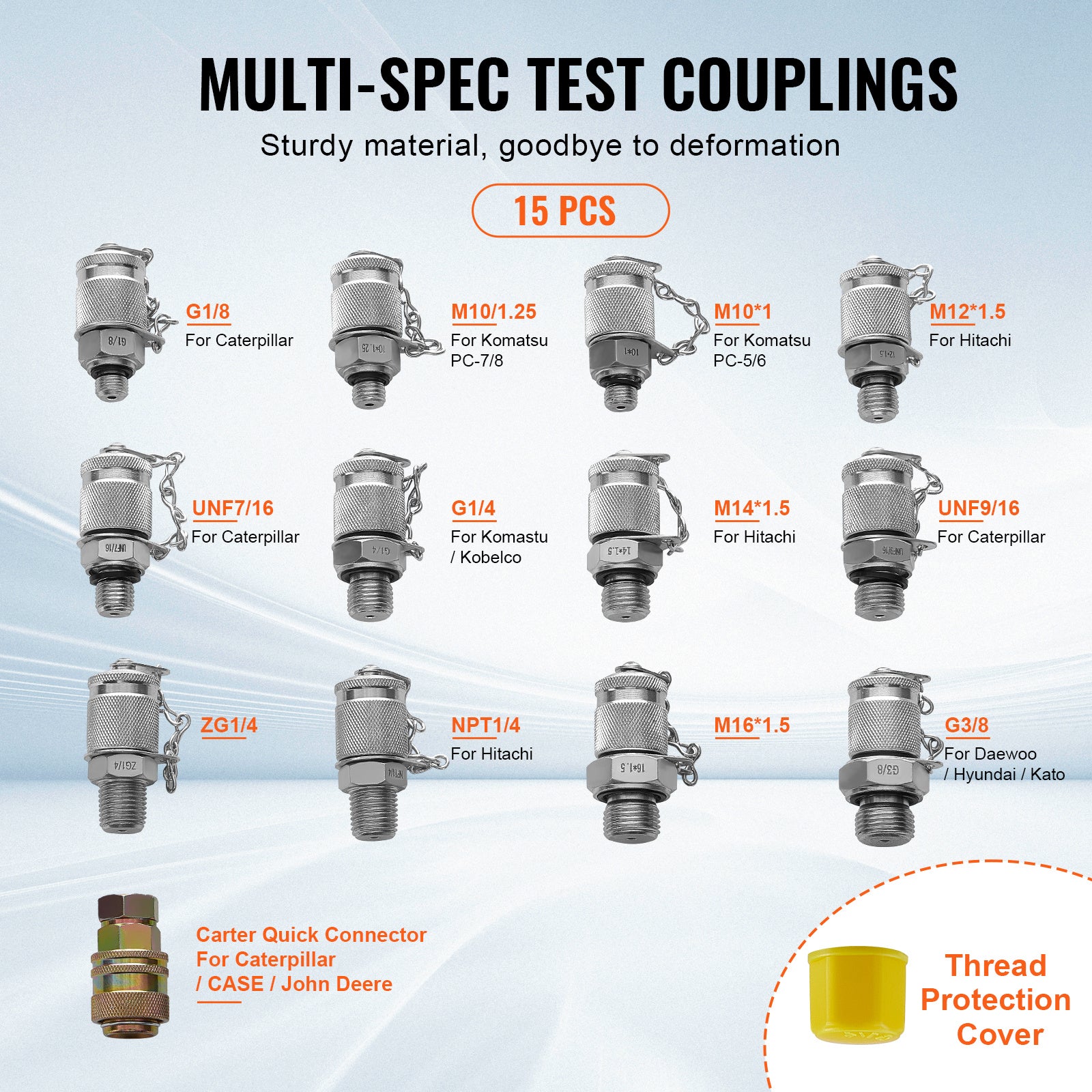

| Test Couplings | 13 test couplings (multi-spec, includes common thread types: G1/8, G1/4, M10, M12, M14, UNF/UN, NPT, etc.) |
| Tee Connectors | 14 tee connectors |
| Test Hoses | 5 hoses, approx. 5.2 ft / 1.6 m each (pressure-resistant) |
| Accessories | Thread protectors, desiccants, instruction manual, carrying case |
| Dimensions | 33 × 34 × 15 cm (specs JSON) — also listed on product tag as 325 × 305 × 115 mm (12.8" × 12.0" × 4.5") |
| Weight | 7.15 kg (specs JSON). Product label/packaging lists net weight ~14.9 lbs / 6.75 kg |
Installation / Usage Tips
- Always depressurize the hydraulic circuit before connecting any gauge or coupling to prevent injury and equipment damage.
- Match the test coupling thread to the machine port — use included adapters for OEM-specific ports and tighten securely.
- Start with the gauge that covers the expected pressure range; avoid over-range exposure to protect the instrument.
- Keep thread protectors on unused gauges and couplings to prevent contamination and damage.
- Store gauges in the carrying case with desiccant to minimize moisture and extend instrument life.

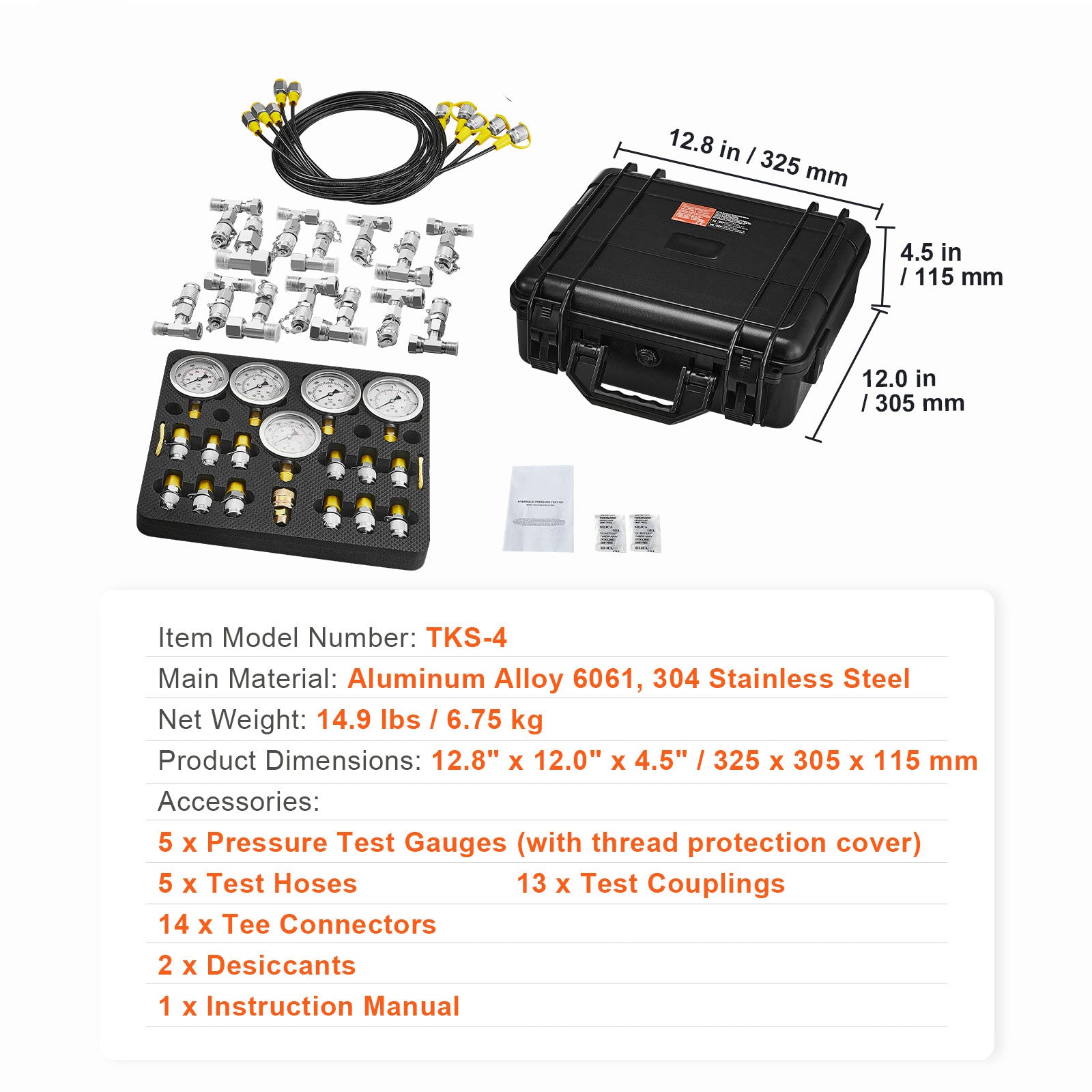

What's in the Box
- 5 × Pressure Test Gauges (with thread protection covers)
- 5 × Test Hoses (≈1.6 m / 5.2 ft each)
- 13 × Test Couplings (multi-spec)
- 14 × Tee Connectors
- 2 × Desiccants
- 1 × Instruction Manual
- 1 × Heavy-duty Carrying Case
Safety & Compliance
Use by trained technicians or under supervision. Always follow vehicle/equipment manufacturer safety procedures. Do not connect to systems above the gauge's rated maximum. Dispose of packaging and desiccants responsibly.
